Industrial Refrigeration

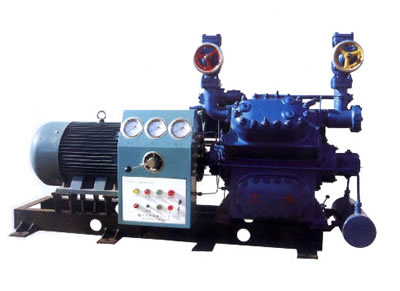

100 Series Reciprocating Compressor Units

Brief

    This series compressors is suitable for all kinds of refrigeration conditions within condensing temperature < 45°C, single stage evaporating temperature +5°C~-30°C, two stage evaporating temperature -25°C~-45°C.


Application Condition


Refrigerant

Item

Single-stage

Double-stage

R717

R717

Low pressure stage

High pressure stage

Max. exhaust pressure Mpa (gauge pressure)

<=1.5

<=0.7

<=1.5

Max. exhaust temp.°C

<=150

<=120

<=150

Max. pressure difference

<=1.4

<=0.8

<=1.4




Technic Data

Item
Unit
2AZ10
4AV10
6AW10
8AS10
4ASJ10
8ASJ10
Unit Capacity Normal Condition
kw
26.7
54
81.4
108

tk=35°C,
t0=-35°C,
17.5

tk=35°C,
t0=-5°C,
37.2
Airconditioning Condition
54
116
174.4
232.6
Shaft Power Normal Condition
kw
8.12
16
23.8
31.6
10.1
20.4
Airconditioning Condition
12
24
36
48
Compressor Piston Numbers
pcs
2
4
6
8

high pressure stage 1
low pressure stage 3

high pressure stage 2
low pressure stage 6
Capacity Regulation


0,1/2,1
0,1/3,
2/3,1
0,1/4,1/2,
3/4,1
0,1/3,
2/3,1
0,1/3,
2/3,1
Cooling Water Flow Rate
kg
300
500
750
1000
500
1000
Motor Power Normal Condition
kw
13
22
37
45
15
30
Airconditioning Condition
15
30
45
55
Voltage Normal Condition
v
380
Airconditioning Condition
